This Night Wolf series helmet-mounted thermal imager is a versatile monocular head-mounted thermal imager, designed for observation and target searching in complex scenarios such as night, dim, lightless, and adverse weather conditions. It is compact and lightweight, with clear and continuous image quality, and a long battery life, making it suitable for head-worn or hand-held use. Especially the optimization of user experience during movement is realized by high refresh rate and pause free thermal image. It is applicable in various fields including security enforcement, outdoor hunting, wilderness exploration, and search and rescue operations.
Night Wolf616
Night Wolf616 thermal monocular delivers HD 1024×768 vision with a 50Hz refresh rate and ≤35mK sensitivity for sharp thermal imaging in total darkness. It features 8 modes including White Hot and Black Hot. Built-in 32GB storage supports photo and video, making it ideal for hunting, security, and outdoor use.
Main Specification
| Resolution, pixels | 640×512/12μm |
| Detector | Uncooled VOx Microbolometer |
| Frame Rate,Hz | 50Hz |
| Shutterless | No Shutter Calibration |
| Display | 0.39" OLED 1024x768 |
| Objective Lens (F1.0) | 16mm |
| Field of View | 27.3° ×20.5° |
| Visual Magnification | 1x |
| Eyepiece Diopter | -6~+3 |
| Eye Relief | 25mm |
| Output Wavelength/Power | 650nm/ 2-5mW |
| Spot Range | ＞100m |
| Spot Size | ＜20mm |
| Digital Zoom | 1-8x |
| Electronic Compass | Azimuth/Pitch Roll |
| Spectral Band | 8~14μm |
| Wi-Fi | Support |
| Video/Image Capture | Support |
| NETD | ≤ 35mk@300K |
| Polarity Model | White Hot/ Black Hot/Iron Red/Desert Yellow/Green Hot/ Red Hot/ Sky Blue / Edge |
| Use Method | Handheld, Head-Mounted, Clip-on |
| Inferface | Power supply / Serial Port / Analog Video Output / Type-C |
| Power Supply | 1X 18650 Li-ion Battery |
| Standby Time（Without WiFi） | ≥ 4h |
| Weight (No Batt) | ≤ 260g |
| Dimensions | 119x39x79mm |
| Mechnical Interface | 2x1/4 Threaded holes, Piccatini Rail |
| Operation Temperature | -20℃～ +50℃ |
| Protection Rating | IP67 |
| Adaptability | All-weather |
| ldentification Range (Human) | 370m |
| Detection Range (Human) | 1500m |

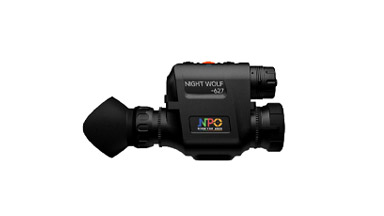

Night Wolf 627
The Night Wolf627 helmet mounted thermal night vision goggle features a 26.7mm large-aperture lens with a 2500m detection range, 8 imaging modes, and 800G shock resistance, built for harsh conditions.
Main Specification
| Detector | Uncooled VOx Microbolometer |
| Resolution | 640×512/12μm |
| Frame Rate | 50Hz |
| Shutterless | No Shutter Calibration |
| Display | 0.39" OLED 1024x768 |
| Object lens (F=1.0) | 26.7mm |
| Field of View | 16.3° x 12.3° |
| Visual Magnification | 1X |
| Eyepiece Diopter | -6~+3 |
| Eye Relief | 25mm |
| Output Wavelength / Power | 650nm/2-5mW |
| Spot Range | ＞100m |
| Spot Size | ＜20mm |
| Digital Zoom | 1-8x |
| Electronic Compass | Azimuth / Pitch/ Roll |
| Wi-Fi | Support |
| Video / Image Capture | Support |
| Spectral Band | 8~14μm |
| NETD | ≤ 35mk@300K |
| Polarity Model | White Hot/ Black Hot/Iron Red/Desert Yellow/Green Hot/ Red Hot/ Sky Blue / Edge |
| Use Method | Handheld, Head-Mounted, Clip-on |
| Weight | ≤ 260g |
| Dimensions | 119x39x79mm |
| Power Supply | 1x18650 Li-ion battery |
| Standby Time (Without Wi-Fi) | ≥6h |
| Interface | Power supply / Serial Port / Analog Video Output/Type-C |
| Mechancial Interface | 2x1/4 Threaded holes, Piccatini Rail |
| Operation Temperature | -20℃-50℃ |
| Protection Rating | IP67 |
| Reliability | 800G Shock Resistance |
| Adaptability | All-weather |
| Recognition Range (Human) | 630m |
| Detection Range (Human) | 2500m |
| Accessory Kit | Cables, Helmet support, well-matched support, Carrying bag, User Manual, Cleaning cloth |
3 ways of uses
640 Resolution Thermal detector

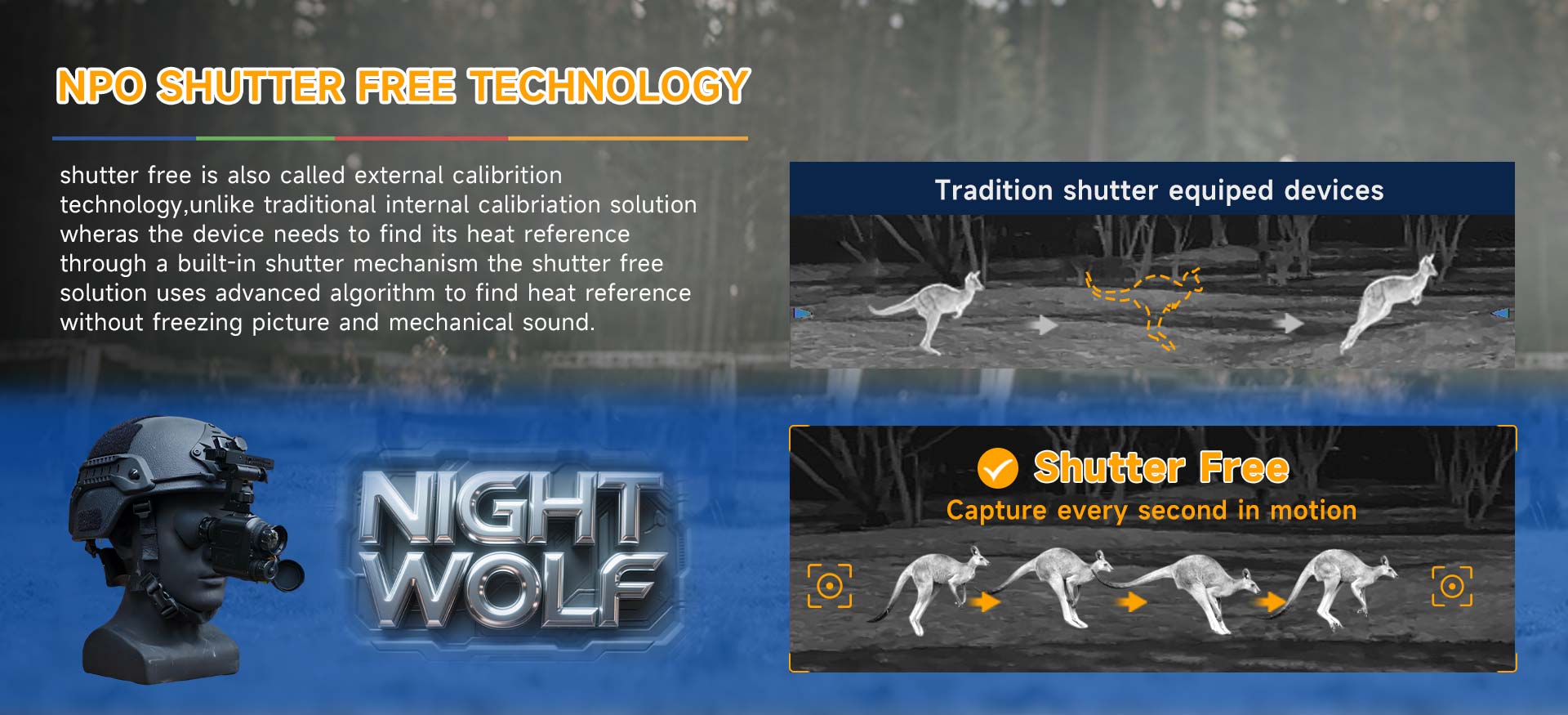

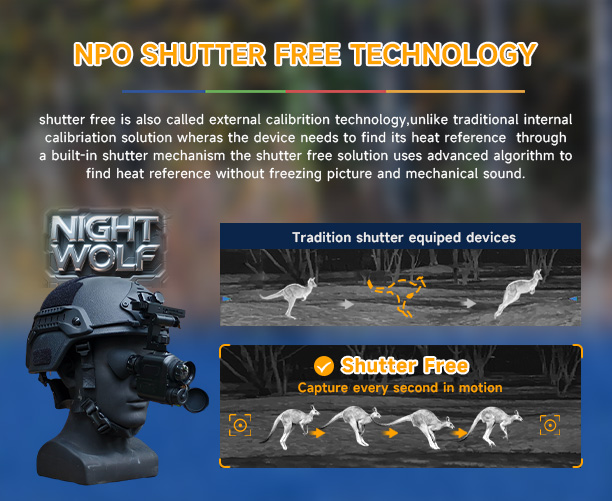

Shutter Free
User manuals
