Rhino series thermal scope is developed for demanding hunters to help them quickly recognize, identify, lock and shoot their target. The Rhino series is equipped with our in-house built blinkless infrared detection core, germanium spherical lens, and magnesium alloy housing, HD OLED display, 32GB memory for video and photo, quick release mount and 1200M laser range finder. The Rhino series consists of 2 models, which are RHINO335L and RHINO645L. The RHINO335L comes with 384X288 resolution thermal detector and a 35mm F=1.0 lens. The RHINO645L comes with 640X512 resolution thermal detector and a 45mm F=1.0 lens.
Rhino335L
Rhino335L thermal scope is the entry product of the Rhino series. It comes with 384X288 resolution thermal detector, and a high quality 35mm germanium lens.
Main Specification
| Detector type | uncooled VOx |
| Resolution | 384X288 |
| Pixel size | 12um |
| NETD | ≤35mk |
| Frame rate | 50Hz |
| Objective lens | 35mm F=1.0 |
| Field of view (HxV) | 7.53x5.56 |
| Magnification | 3.5X 7X 10.5X |
| Detection range (human target 1.7X0.5m) | 2000M |
| Detection range (vehicle 2.3X2.3m) | 3000M |
| Display | 1024x768 0.39" OLED |
| Power supply | Li-ion battery |
| Battery type | 2x18650 |
| Battery capacity | 3300mAh |
| Battery voltage | 4.2V |
| Max operation time (t=22℃) | 10hours |
| Weight | 680g |
| Dimension | 227x50x75mm |
| Protection level | IP67 |
| Electrical interface | Type-C |
| Operation temperature | -40℃~50℃ |
| Momery capacity | 32GB |
| Wi-Fi | Support |
| Screenshot | Support |
| Cursor | Support |
| Video recording | Support |
| Warm spot tracking | Support |
Rhino645L
Rhino645L thermal scope is the mainstay product of the Rhino series. It comes with 640X512 resolution thermal detector, and a high quality 45mm germanium lens.
Main Specification
| Detector type | uncooled VOx |
| Resolution | 640x512 |
| Pixel size | 12um |
| NETD | ≤35mk |
| Frame rate | 50Hz |
| Objective lens | 45mm F=1.0 |
| Field of view (HxV) | 9.75x7.81 |
| Magnification | 2.7X 5.4X 10.8X 21.5X |
| Detection range (human target 1.7X0.5m) | 2500M |
| Detection range (vehicle 2.3X2.3m) | 3500M |
| Display | 1024x768 0.39" OLED |
| Power supply | Li-ion battery |
| Battery type | 2x18650 |
| Battery capacity | 3300mAh |
| Battery voltage | 4.2V |
| Max operation time (t=22℃) | 8hours |
| Weight | 700g |
| Dimension | 227x50x75mm |
| Protection level | IP67 |
| Electrical interface | Type-C |
| Operation temperature | -40℃~50℃ |
| Momery capacity | 32GB |
| Wi-Fi | Support |
| Screenshot | Support |
| Cursor | Support |
| Video recording | Support |
| Warm spot tracking | Support |

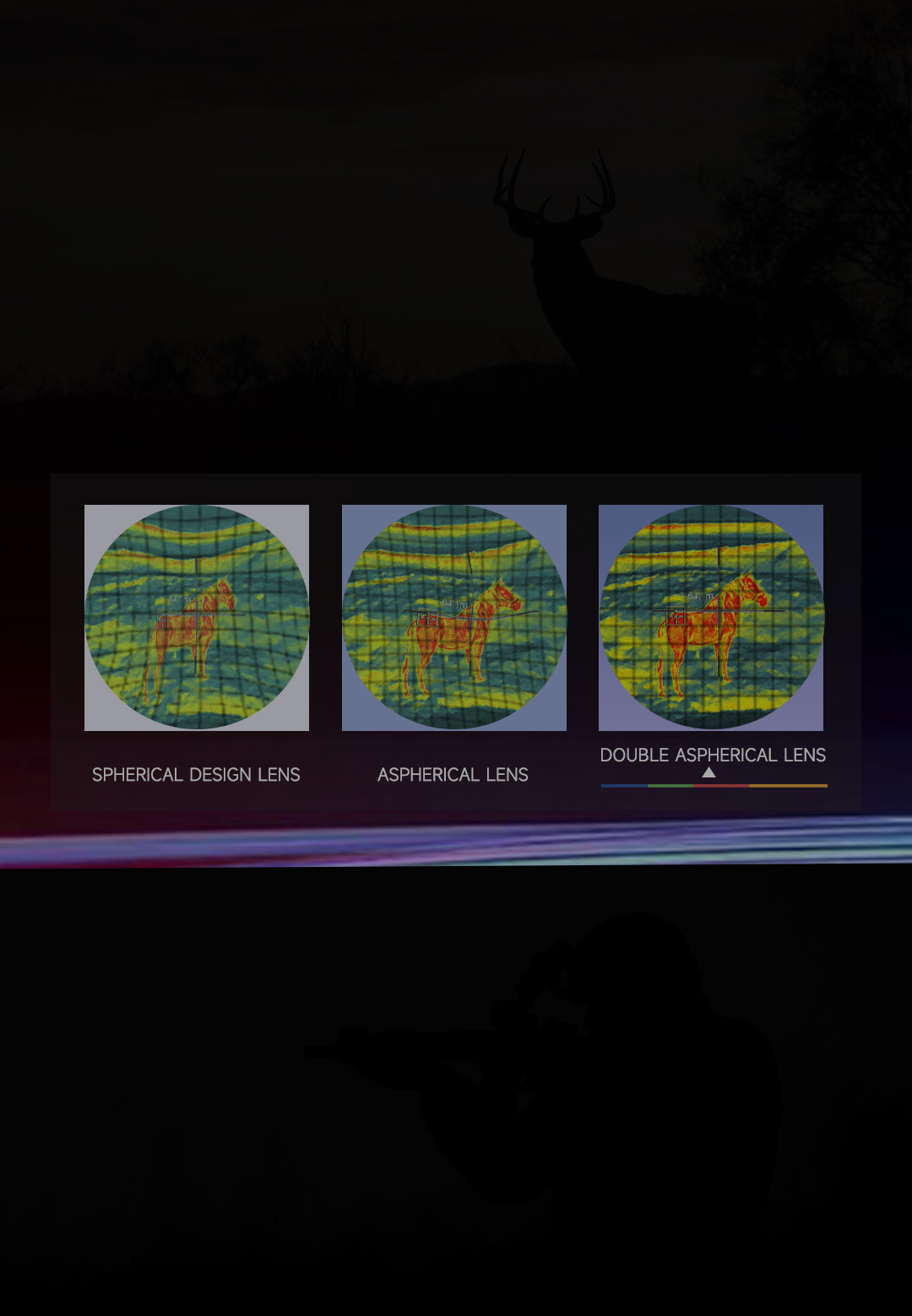

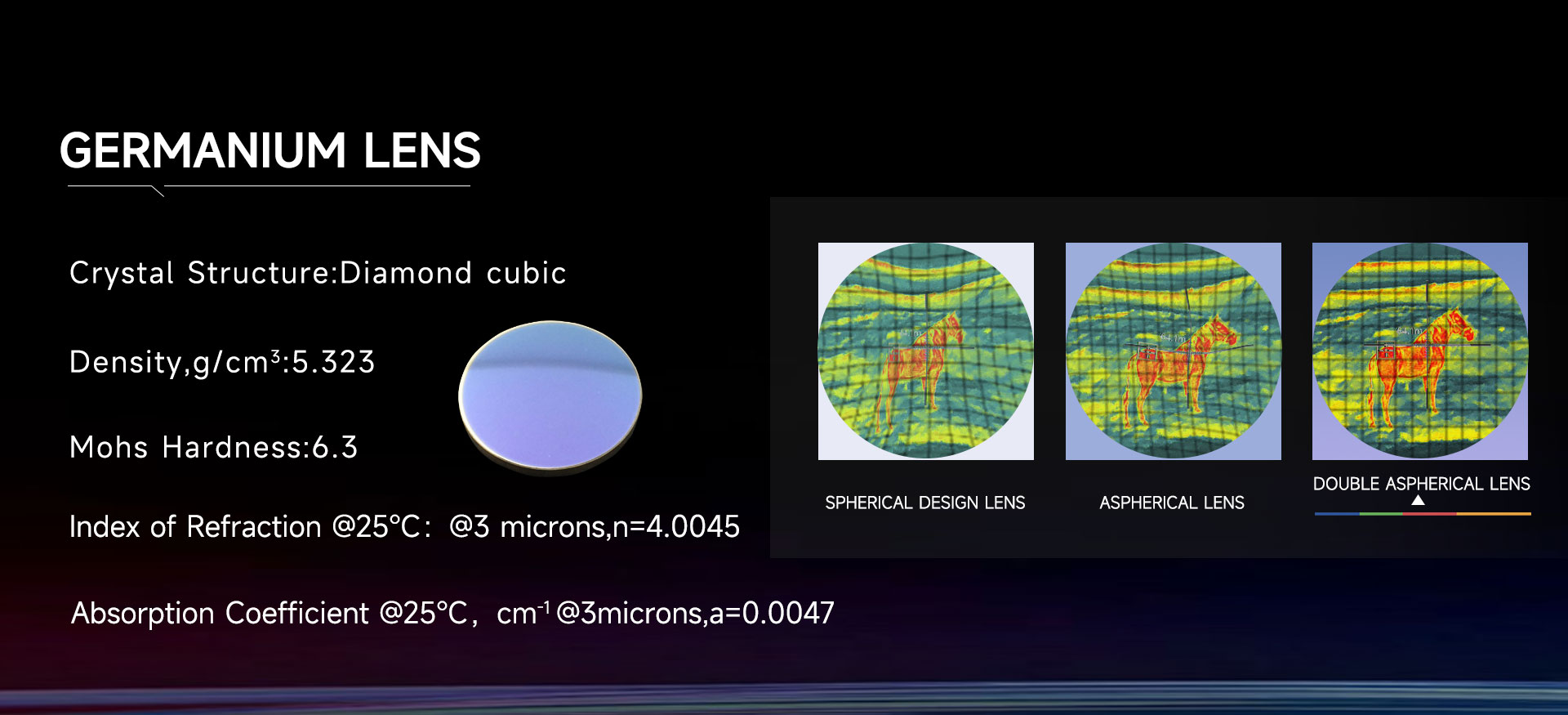

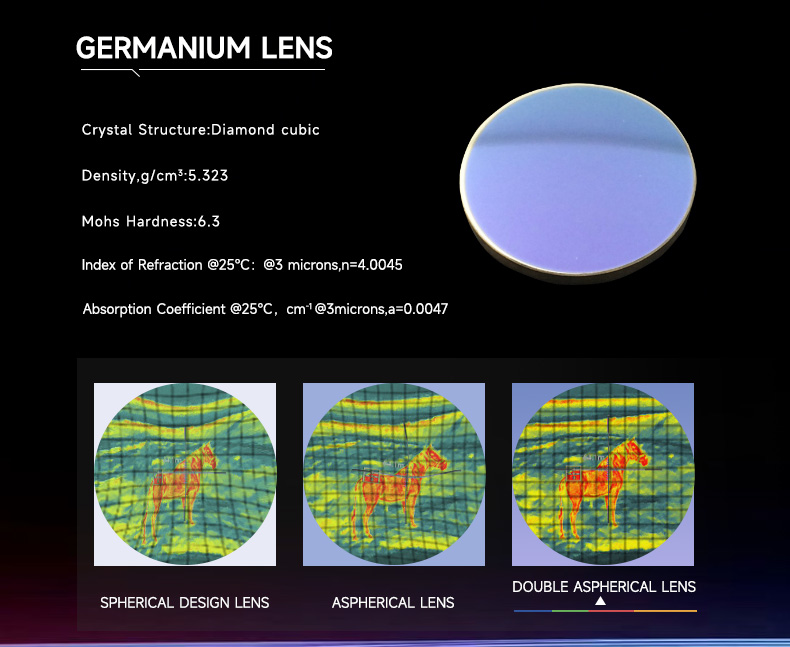

Double Aspherical Germanium
Shutter Free
Magnesium Alloy
Joystick Control
User manuals
Palm handheld thermal monocular
NPO newly developed super compact handheld thermal monocular, using high performance infrared sensor, a perfect tool in outdoor search and observation. Forged magnesium alloy shell given best structure strength while maintaining the ultra-light weight at the same time. The luxury field of view derived from a top performed 640X512 large matrix 12um thermal detector, working […]

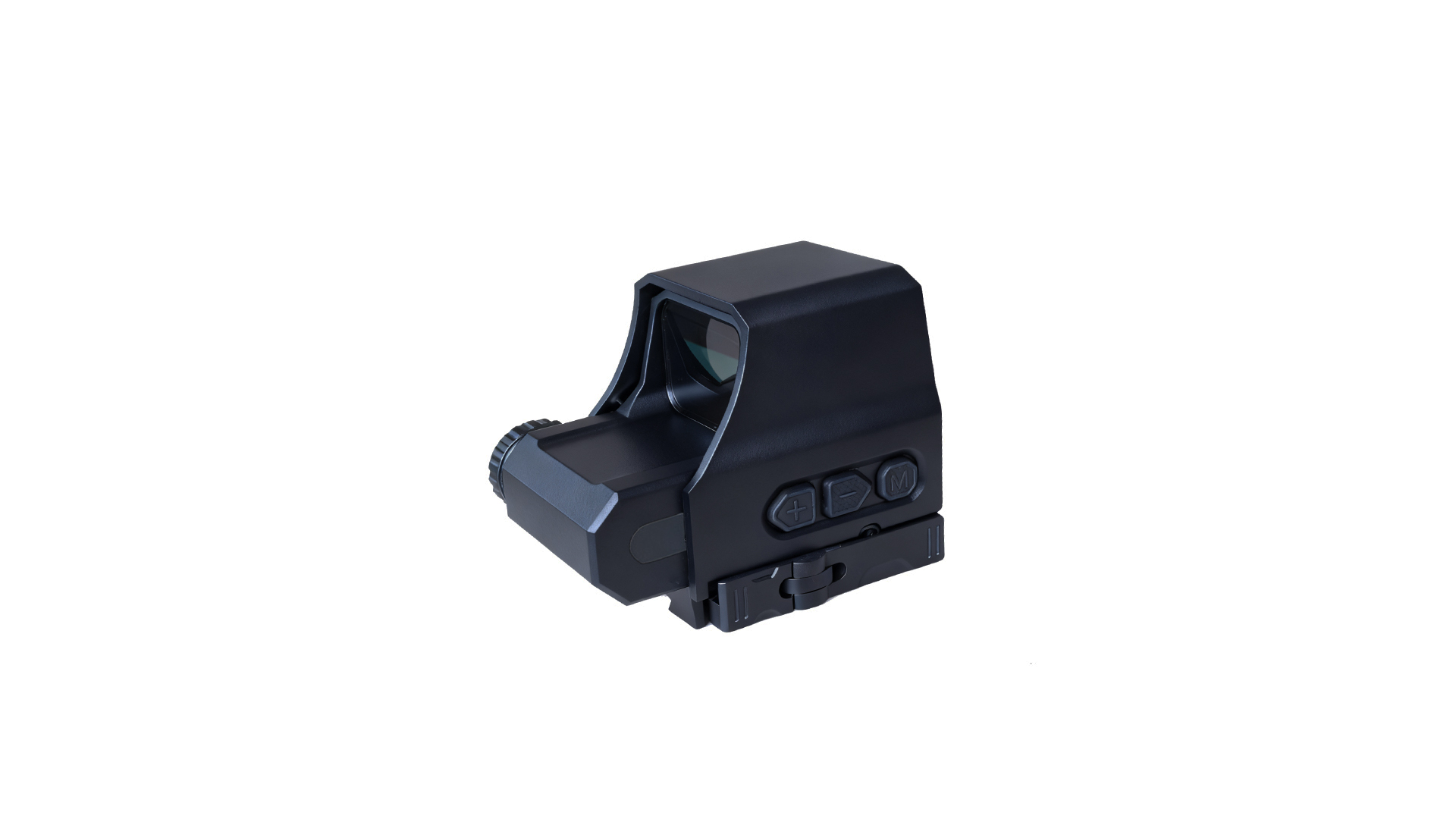

Penguin15 Holographic sight
